Author: Dan Lazar

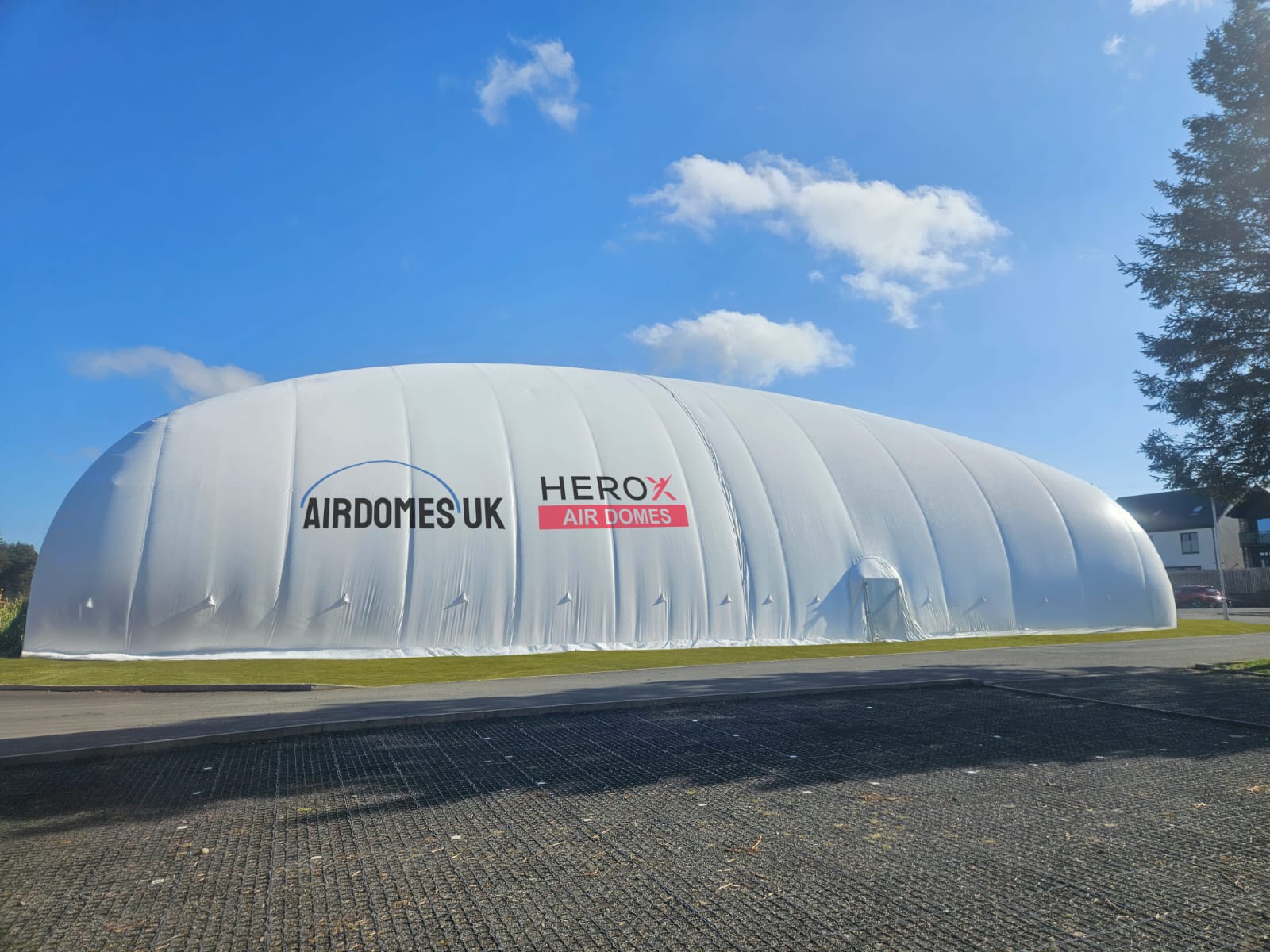

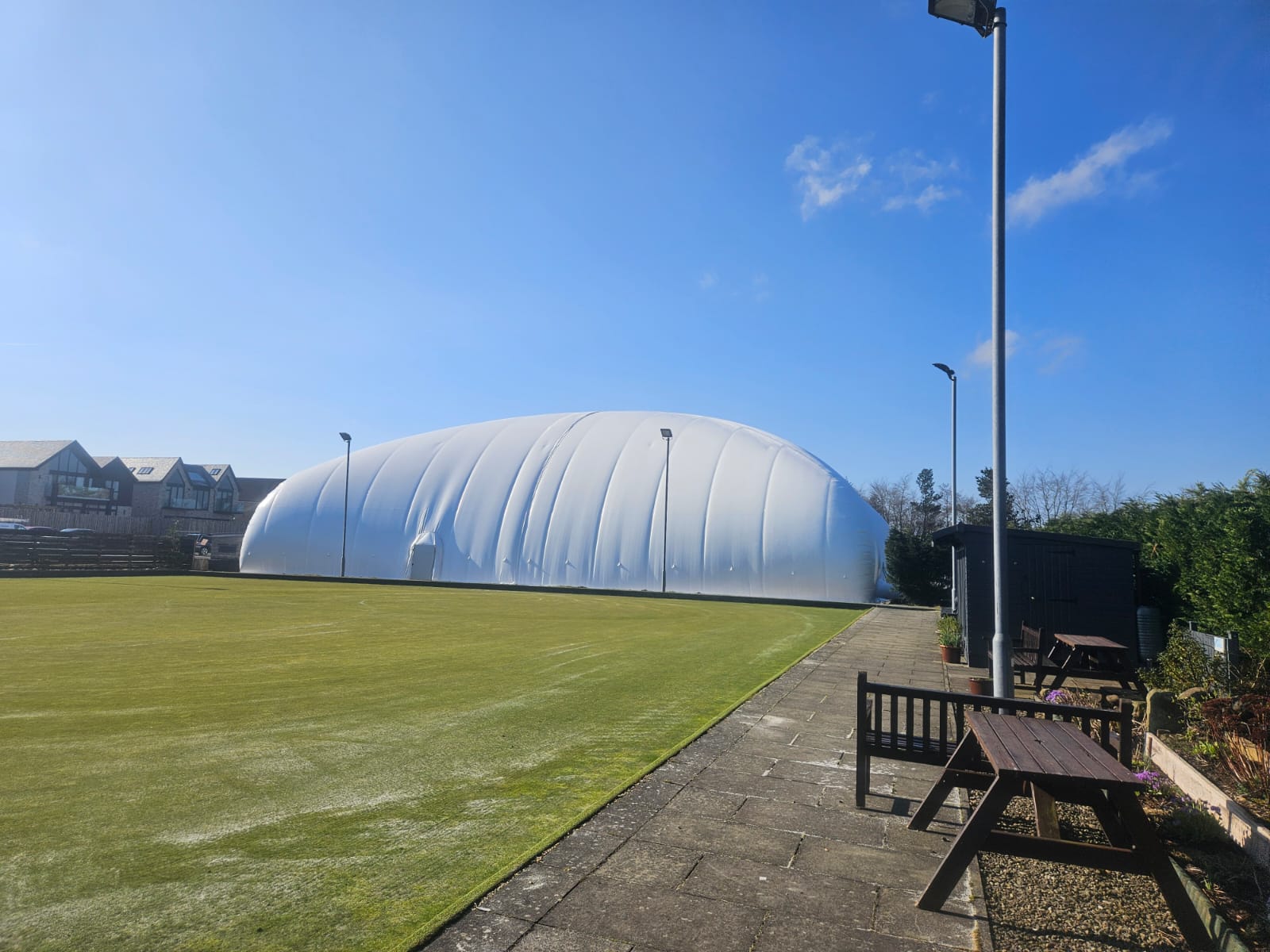

  • UK first padel air dome

    __wf_reserved_inherit

    PROJECT DETAILS

    1. Application: Padel
    2. Year Completed: 2025
    3. Dimensions: 32.5m (l) x 35.8m (w) 10.5m (h) 1,163 m2
    4. Membrane Spec: Sattler | 700 (g/m2) exterior | 500 (g/m2) interior
    5. Membrane Details: Polyester fabric, double-sided PVC coating and lacquered, upside high-gloss embossed, fungicidal finish, flame retardant
    6. Mechanicals: Premium SMART inflation and back-up unit with 40.000 mc/h combined
    7. Doors: 1 revolving door, 4 emergency exit
    8. Lighting: LED lighting fixtures with 600lx
    9. Unique Features: extra large revolving door

    Preparing the surface

    __wf_reserved_inherit

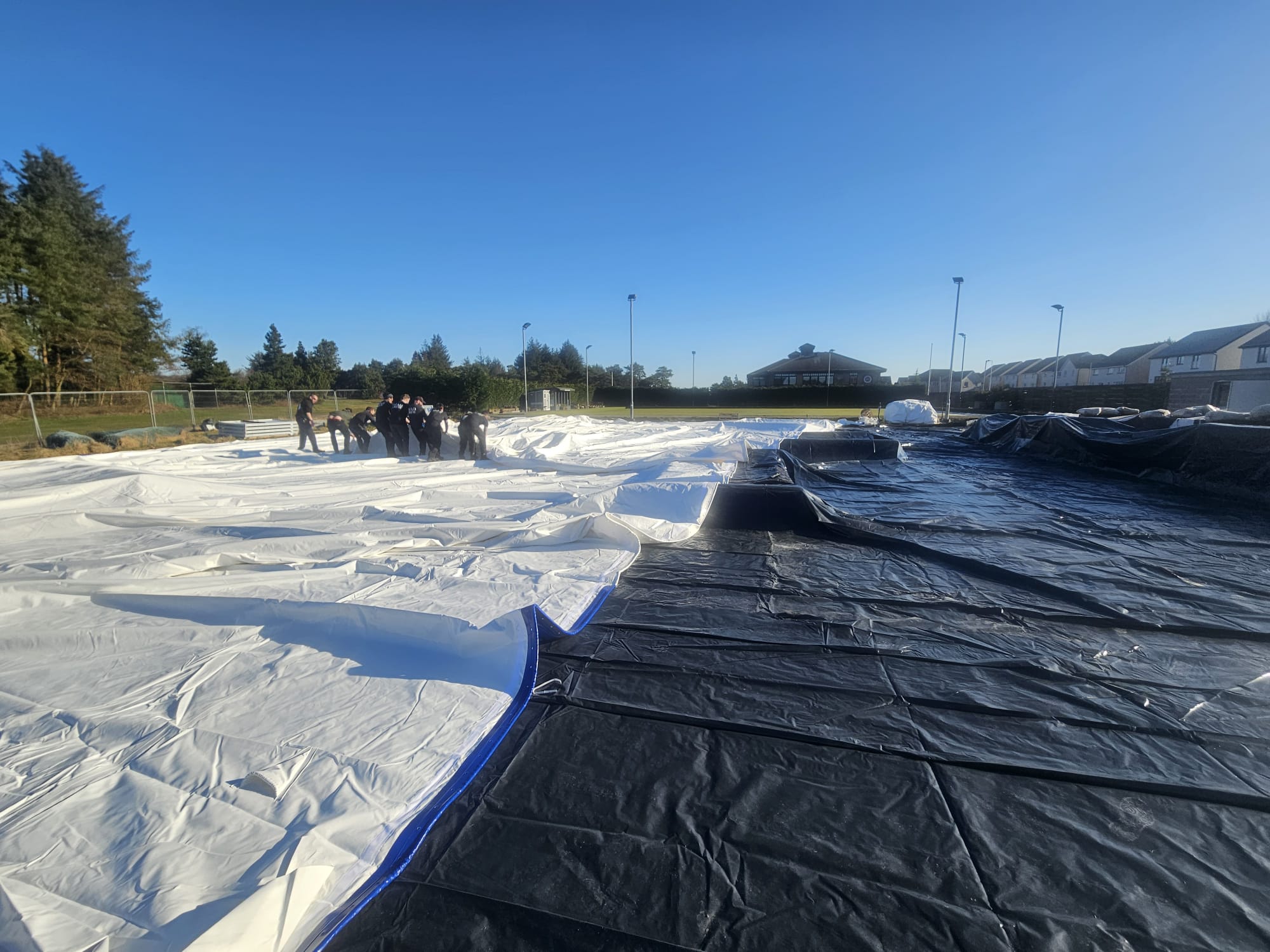

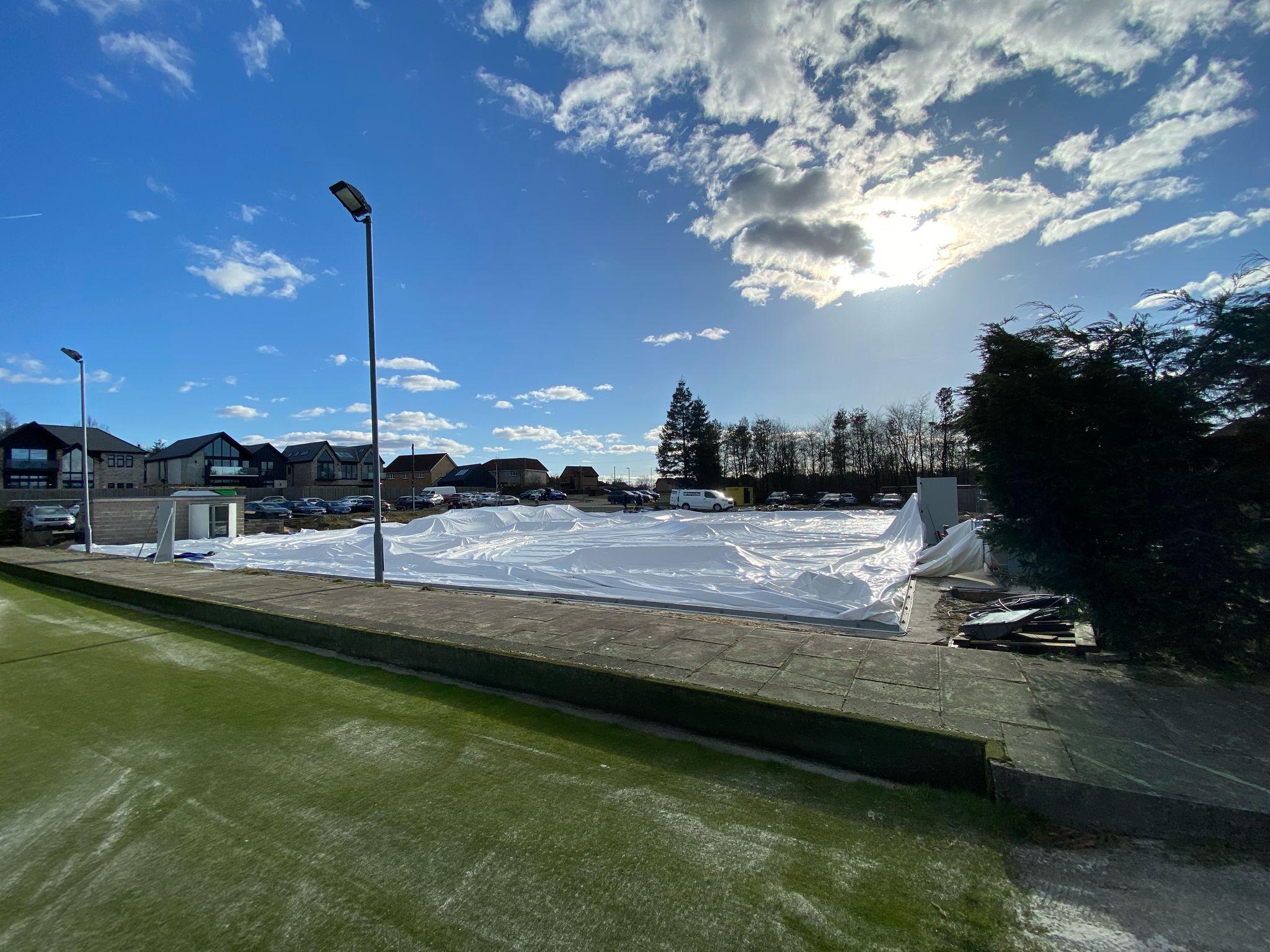

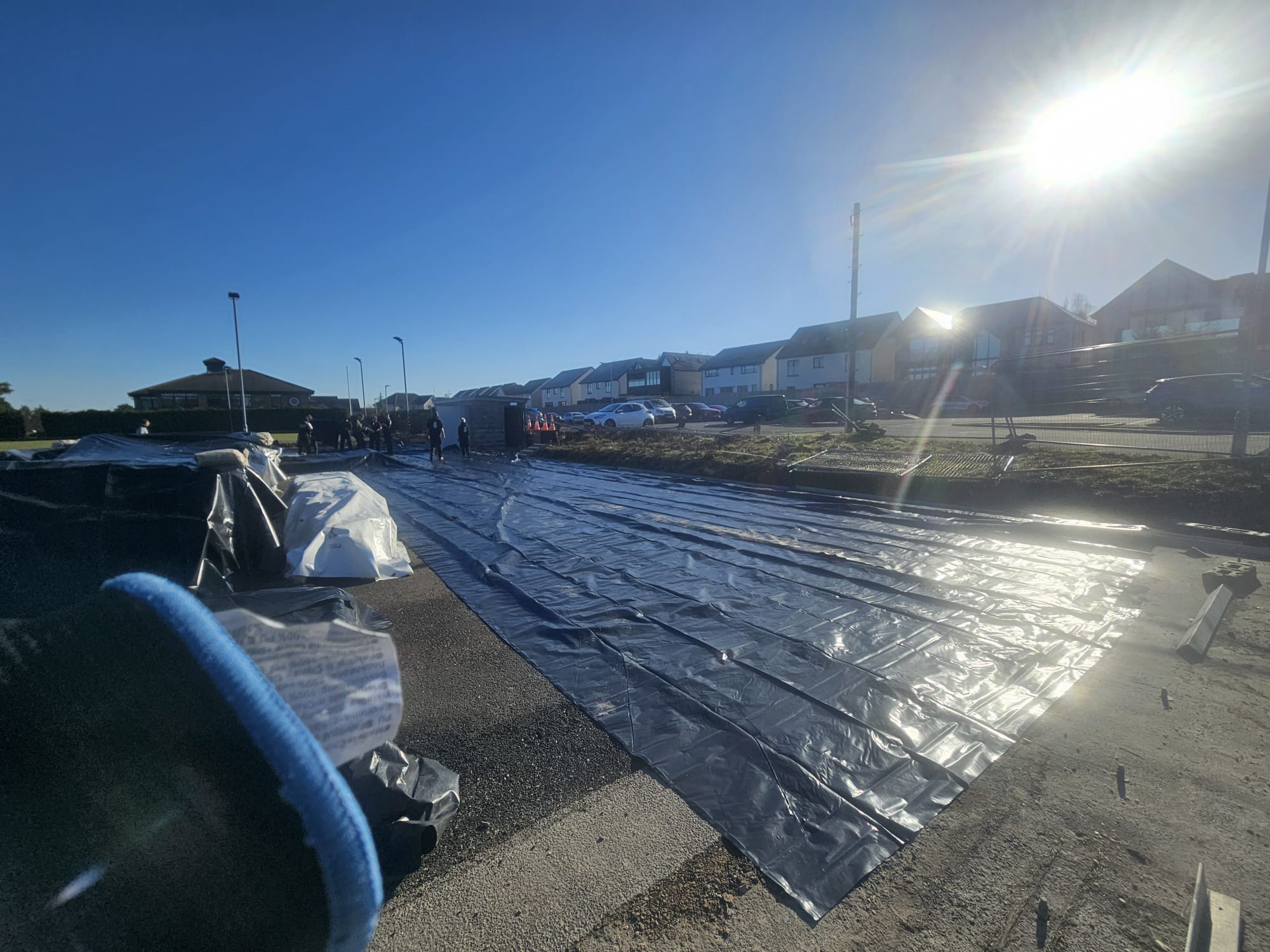

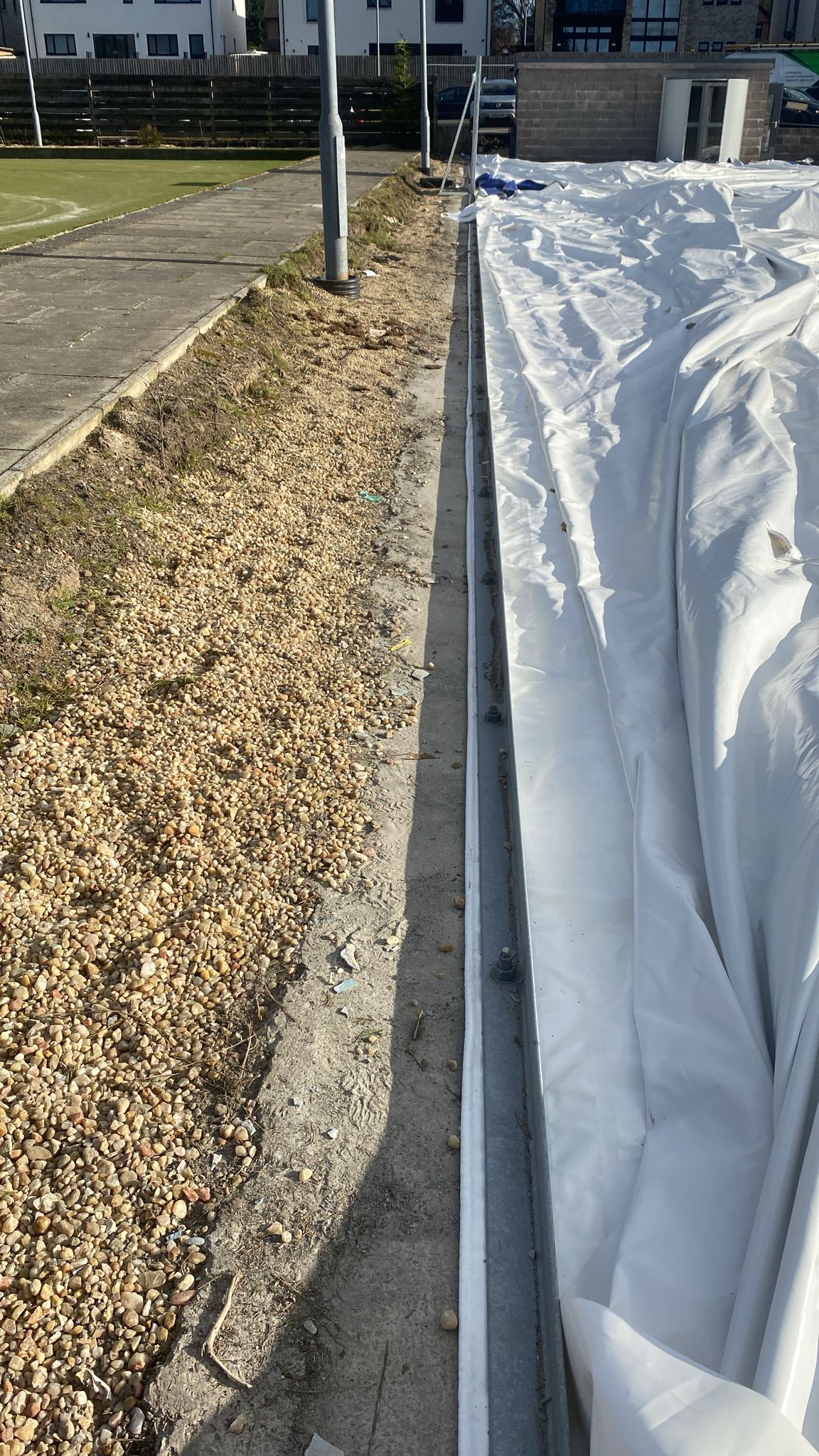

    Spreading the membrane
    __wf_reserved_inherit
    __wf_reserved_inherit
    Anchoring the dome
    __wf_reserved_inherit

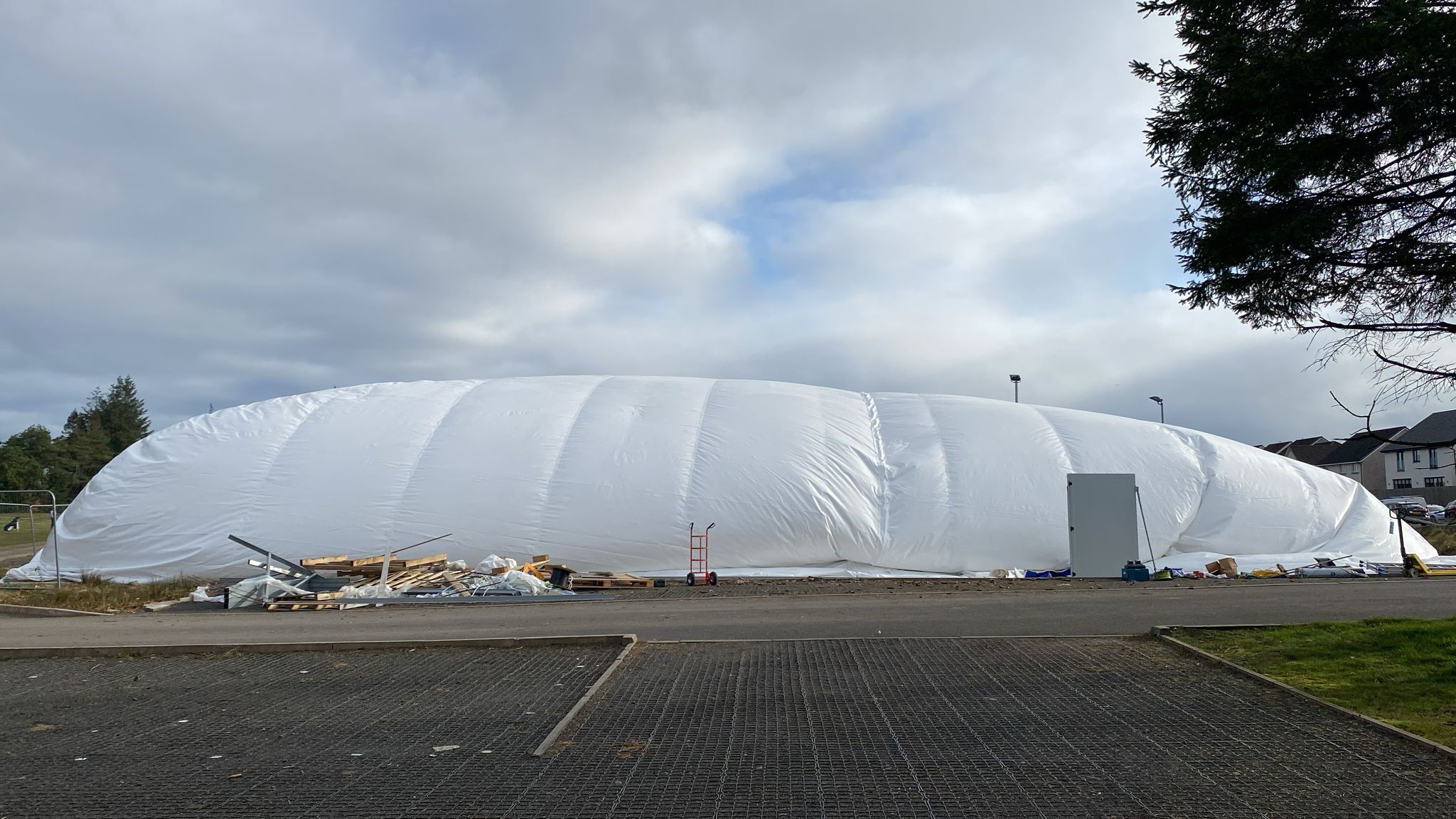

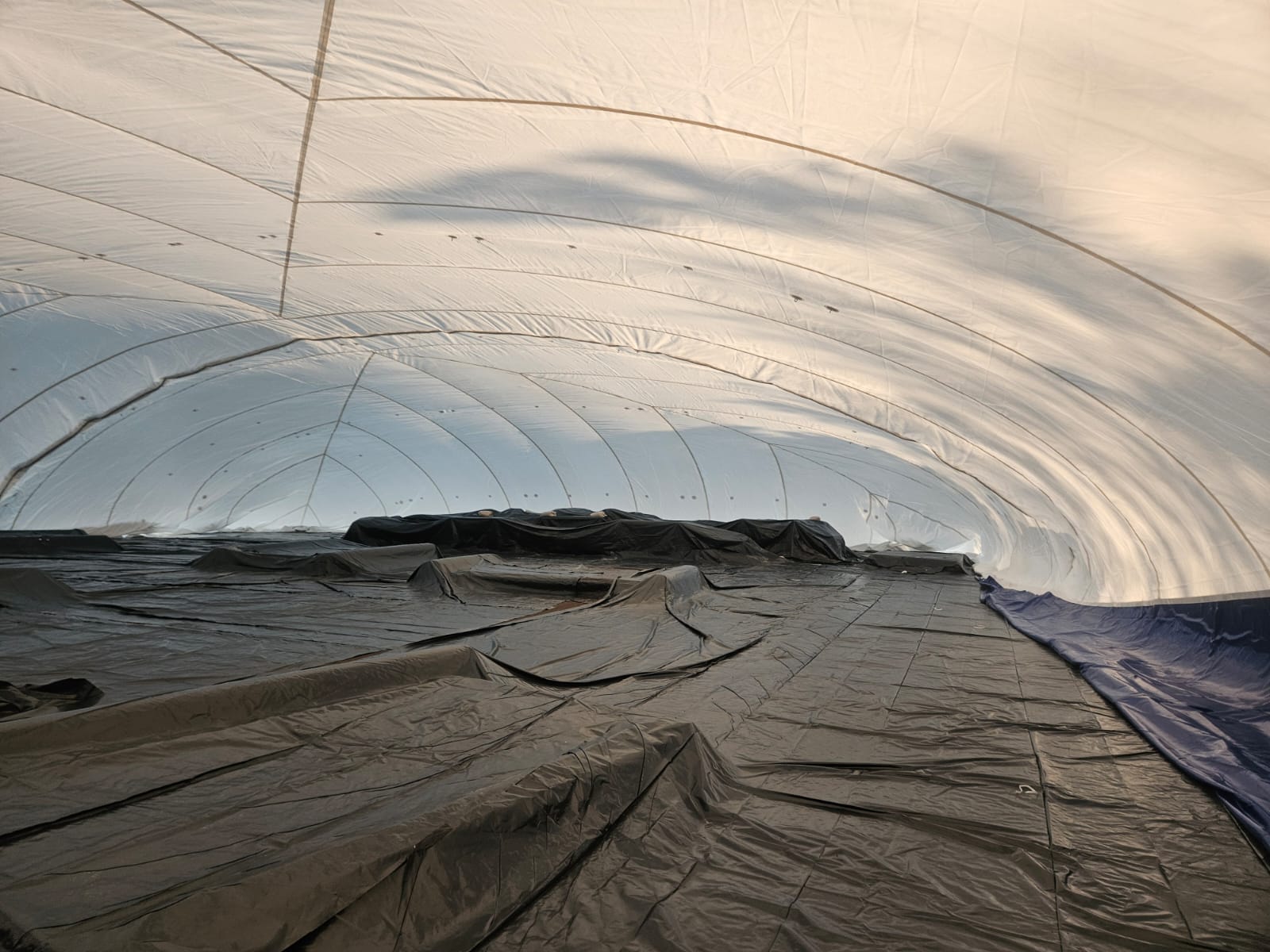

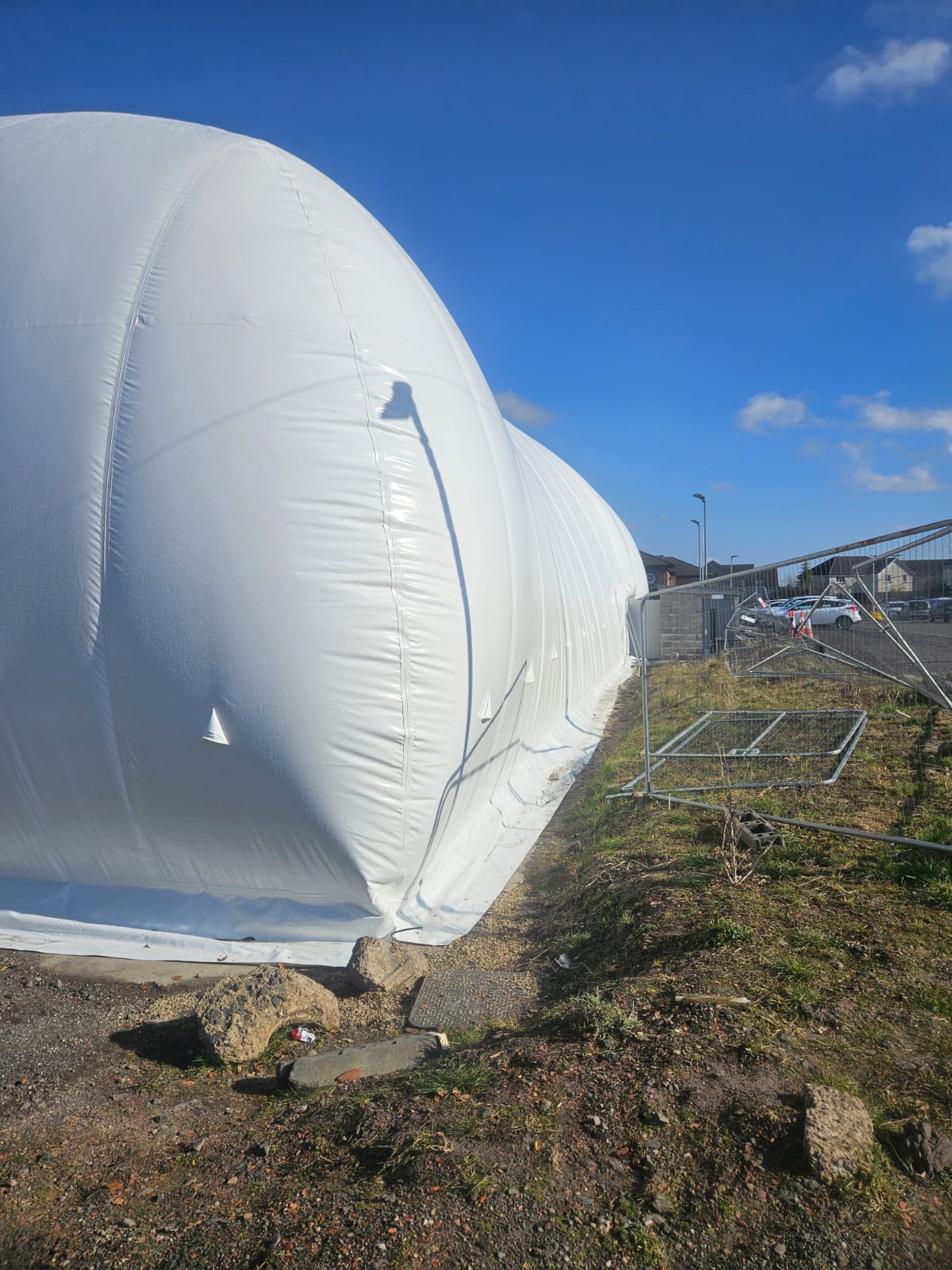

    Inflating the dome
    __wf_reserved_inherit
    __wf_reserved_inherit
    Padelbox shape
    __wf_reserved_inherit
    __wf_reserved_inherit
    __wf_reserved_inherit
    __wf_reserved_inherit

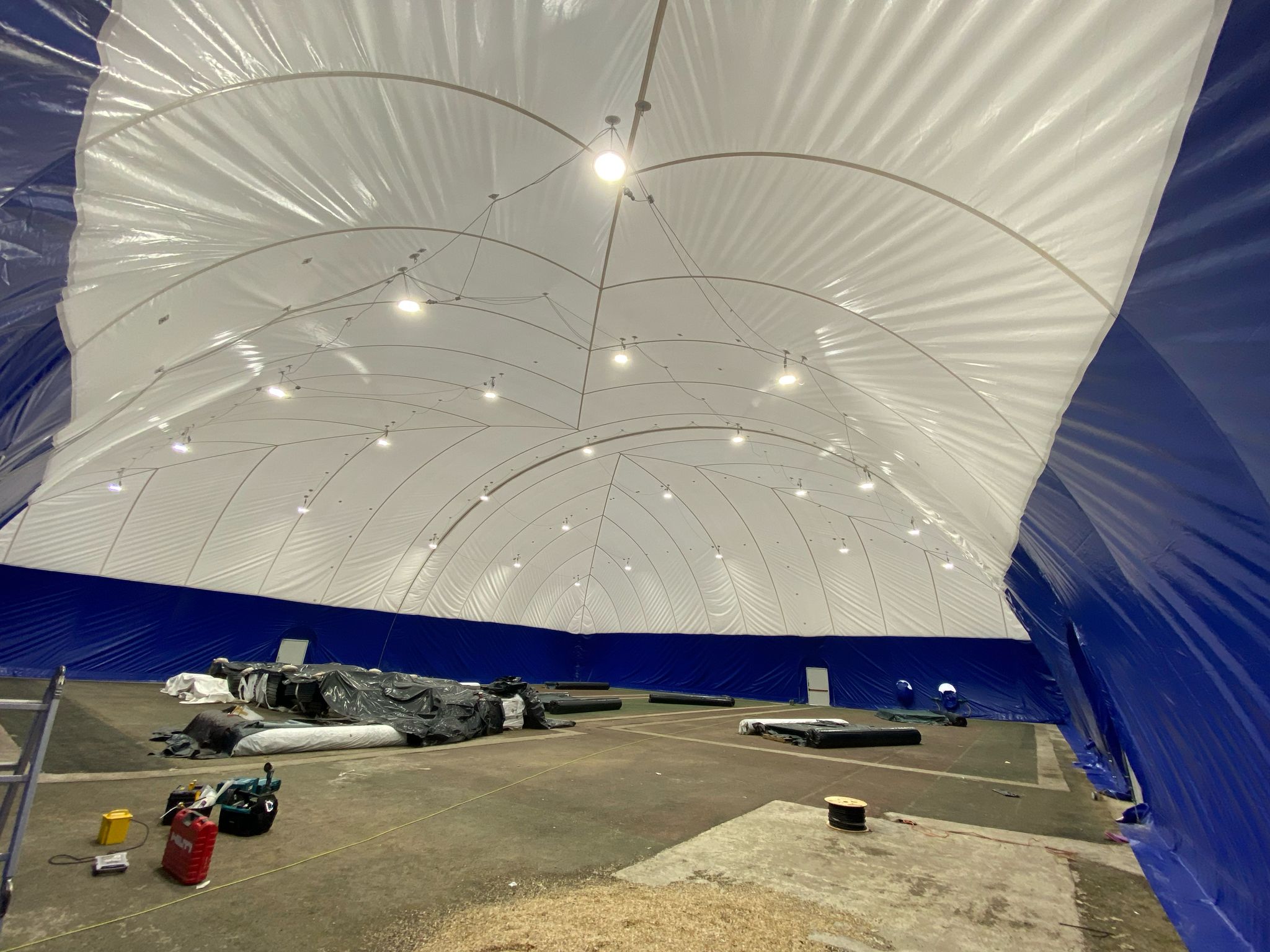

    Installing the lighting system
    __wf_reserved_inherit
    Lights on
    __wf_reserved_inherit
    __wf_reserved_inherit
    __wf_reserved_inherit
    __wf_reserved_inherit
  • Royal Astrid Club Dome

    PROJECT DETAILS

    1. Application: Tennis
    2. Year Completed: 2025
    3. Dimensions: 35.9m (l) x 48.6m (w) 10.5m (h) 1,744 m2
    4. Membrane Spec: Sattler | 700 (g/m2) exterior | 500 (g/m2) interior
    5. Membrane Details: Polyester fabric, double-sided PVC coating and lacquered, upside high-gloss embossed, fungicidal finish, flame retardant
    6. Mechanicals: Premium inflation and back-up unit with 30.000 mc/h combined
    7. Doors: 1 revolving door, 1 emergency exit
    8. Lighting: LED lighting fixtures with 300lx
    9. Unique Features: green exterior for compliance with local municipality’s requirements

    Engineering

    __wf_reserved_inherit

    Excavation

    __wf_reserved_inherit

    Installing the retractable rings

    __wf_reserved_inherit

    Pouring concrete

    __wf_reserved_inherit

    Covering the concrete with clay

    __wf_reserved_inherit

    Spreading the membrane

    __wf_reserved_inherit

    Inflating the dome

    __wf_reserved_inherit

    View from inside (large skylight to play all day without having to turn on the led lights)

    __wf_reserved_inherit

    55cm air pocket for maximum energy efficiency

    __wf_reserved_inherit

    Revolving door entrance

    __wf_reserved_inherit

    Ready to play

    __wf_reserved_inherit
    __wf_reserved_inherit
  • Panalim Dome

    PROJECT DETAILS

    1. Application: Tennis
    2. Year Completed: 2020
    3. Dimensions: 38.5m (l) x 36m (w) 9m (h) 1,386 m2
    4. Membrane Spec: Sattler Protex | 700 (g/m2) exterior | 500 (g/m2) interior
    5. Membrane Details: Polyester fabric, double-sided PVC coating and lacquered, upside high-gloss embossed, fungicidal finish, flame retardant
    6. Mechanicals: Premium inflation unit with 15.000 mc/h and 246 kW heating capacity.
    7. Doors: 1 tunnel door, 1 emergency exit
    8. Lighting: LED lighting fixtures
    9. Unique Features: Engine inverter that decreases the electricity consumption by 30-40%

    Delivery

    Surface preparation

    Spreading the membrane

    Inflating the dome

    Installation complete

  • Top 3 Ways Colleges Benefit From an Air Dome on Campus

    Air-supported structures, or sports domes, are becoming increasingly popular in college athletics for their versatility and cost-effectiveness. Herox’s tennis air domes offer a variety of sports, including tennis, at a fraction of traditional building costs. These domes are durable, lasting 20 to 25 years, and feature airlocks, insulation, emergency systems, and fire-retardant fabric, all tailored to local codes and climates.

    Colleges like Princeton, Seneca, and Thiel have already reaped the benefits of these domes, which offer:

    1. Home-Field Advantage: Domes provide a year-round, optimal training environment, eliminating weather-related disruptions and giving teams a competitive edge.
    2. Recruitment Magnet: With wellness increasingly important to students, domes symbolize a commitment to sports and recreation, making them a key attraction for prospective students.
    3. Revenue Generator: Beyond educational value, domes offer financial benefits. They can be rented out for community events, sports leagues, and various functions, boosting institutional and local economy.

    In short, Herox air domes are not just sports facilities; they’re multi-purpose investments enhancing campus life, student appeal, and financial sustainability.

  • What are Air Domes?

    A HeroX air dome—also known as an inflatable dome or “bubble”—is an advanced, air-supported structure made from durable, multi-layered PVC fabric that’s heat-welded for maximum strength.
    High-efficiency air blowers maintain constant internal pressure, keeping the dome fully inflated and structurally sound in all seasons. Integrated climate control systems ensure a comfortable environment year-round, while air-lock doors manage foot traffic without compromising internal pressure.
    HeroX domes are engineered for performance, comfort, and speed of deployment—bringing your indoor facility to life, fast.

  • Madison Racquet and Swim Club

    PROJECT DETAILS

    1. Application: Swimming
    2. Year Completed: 2024
    3. Dimensions: 70ft (l) x 100ft (w) 32ft (h) 7,000 sq ft
    4. Membrane Spec: Serge Ferrari | 28 (oz/sq. yd) exterior | 15 (oz/sq. yd) interior
    5. Membrane Details: Polyester fabric, double-sided PVC coating and lacquered, upside high-gloss embossed, fungicidal finish, flame retardant
    6. Doors: 1 personnel air lock, 2 emergency exit
    7. Lighting: indirect lighting fixtures
    8. Unique Features: 55cm air pocket for high energy efficiency

    Virtual Tour

    Testimonial

    Previous dome

    __wf_reserved_inherit

    New dome outside view

    __wf_reserved_inherit
    __wf_reserved_inherit

    New dome inside view

    __wf_reserved_inherit
    __wf_reserved_inherit
    __wf_reserved_inherit
  • Tennis Club De Bioul

    PROJECT DETAILS

    1. Application: Tennis
    2. Year Completed: 2024
    3. Dimensions: 32m (l) x 36m (w) 11m (h) 1,152 m2
    4. Membrane Spec: Sattler | 700 (g/m2) exterior | 500 (g/m2) interior
    5. Membrane Details: Polyester fabric, double-sided PVC coating and lacquered, upside high-gloss embossed, fungicidal finish, flame retardant
    6. Mechanicals: Premium inflation and back-up unit with 28.000 mc/h combined and 246 kW heating capacity
    7. Doors: 1 revolving door, 1 emergency exit
    8. Lighting: LED lighting fixtures
    9. Unique Features: 55cm air pocket

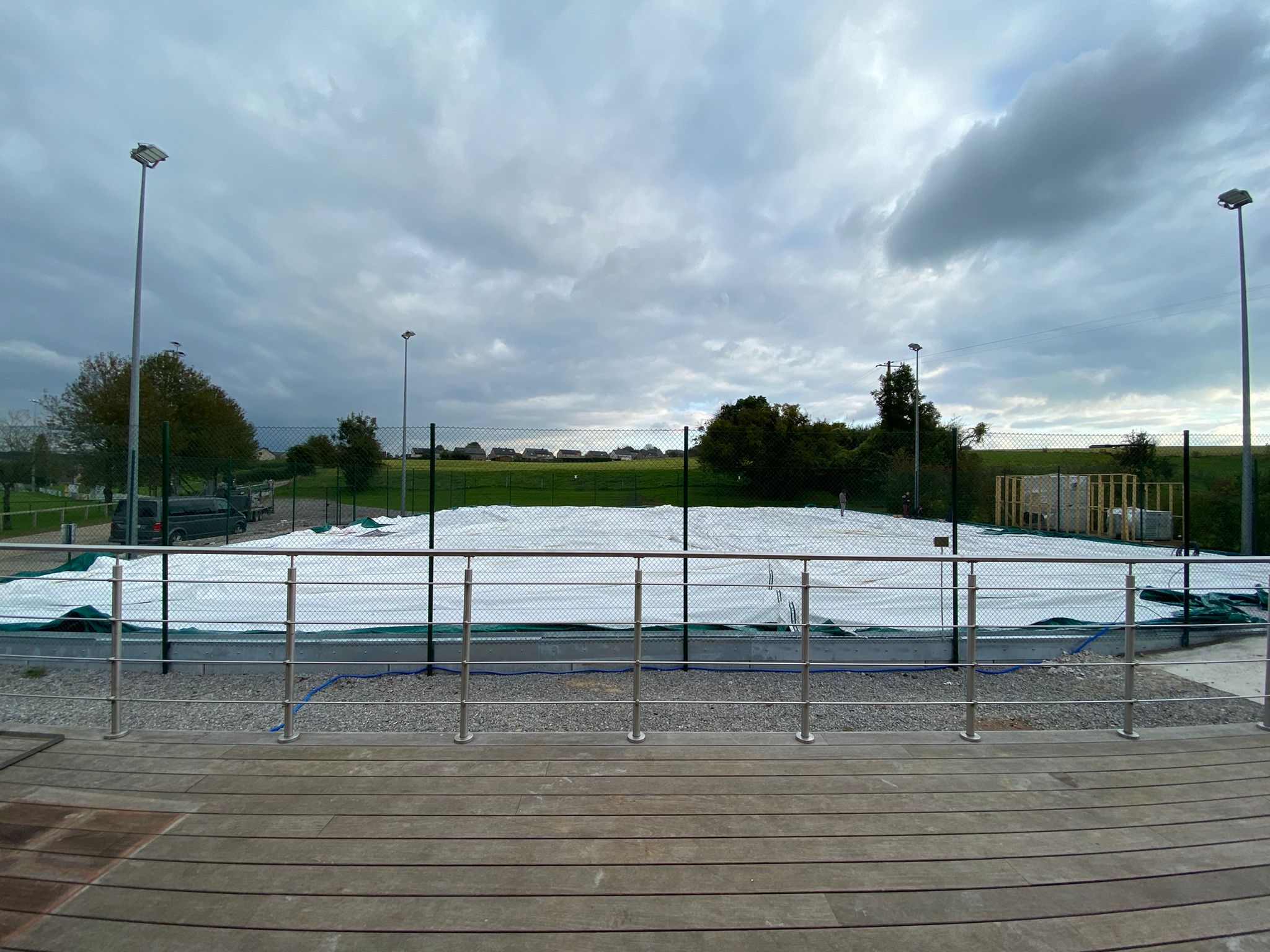

    Spreading the membrane

    __wf_reserved_inherit

    Inflating the dome

    __wf_reserved_inherit

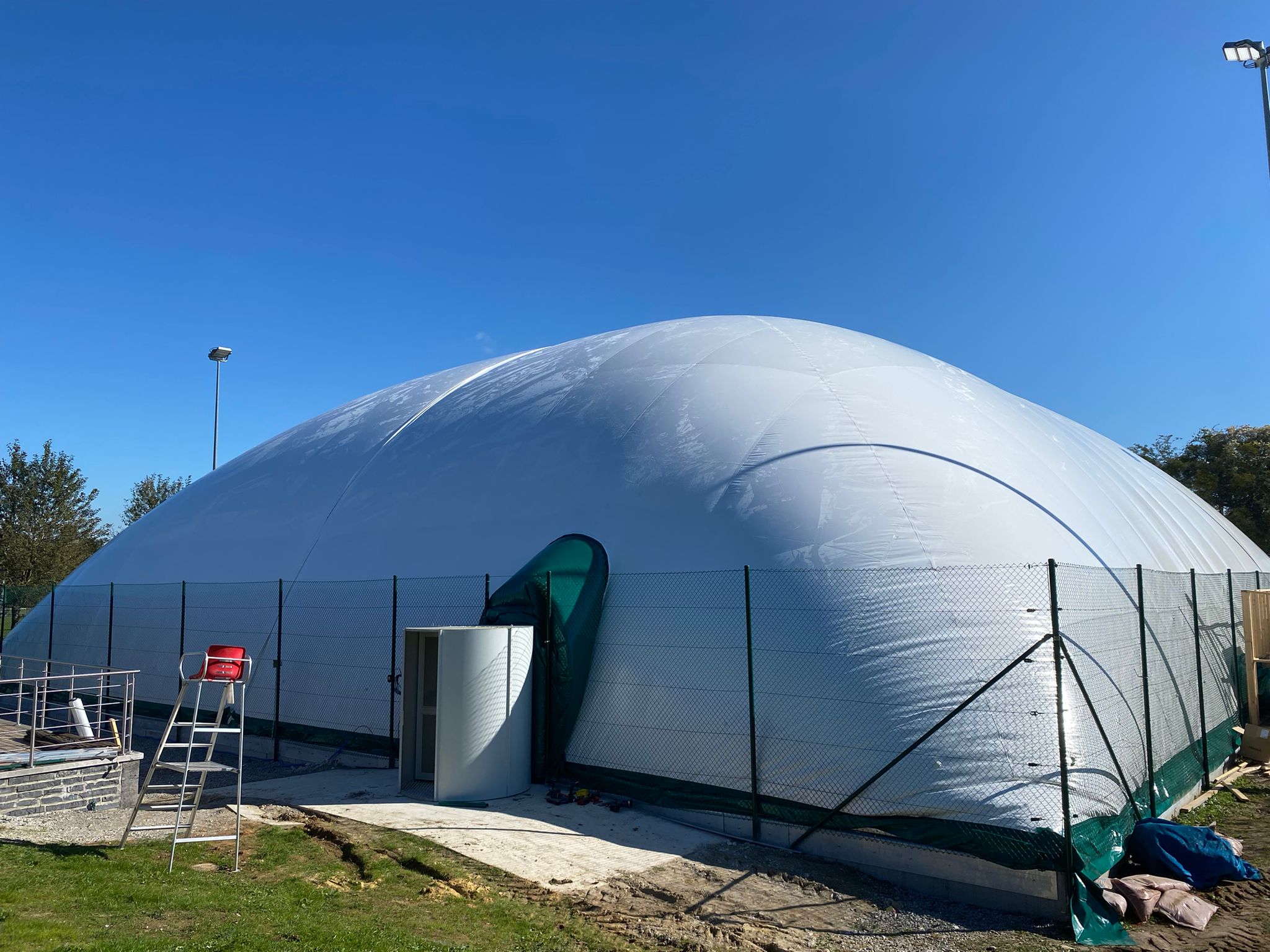

    Exterior View

    __wf_reserved_inherit

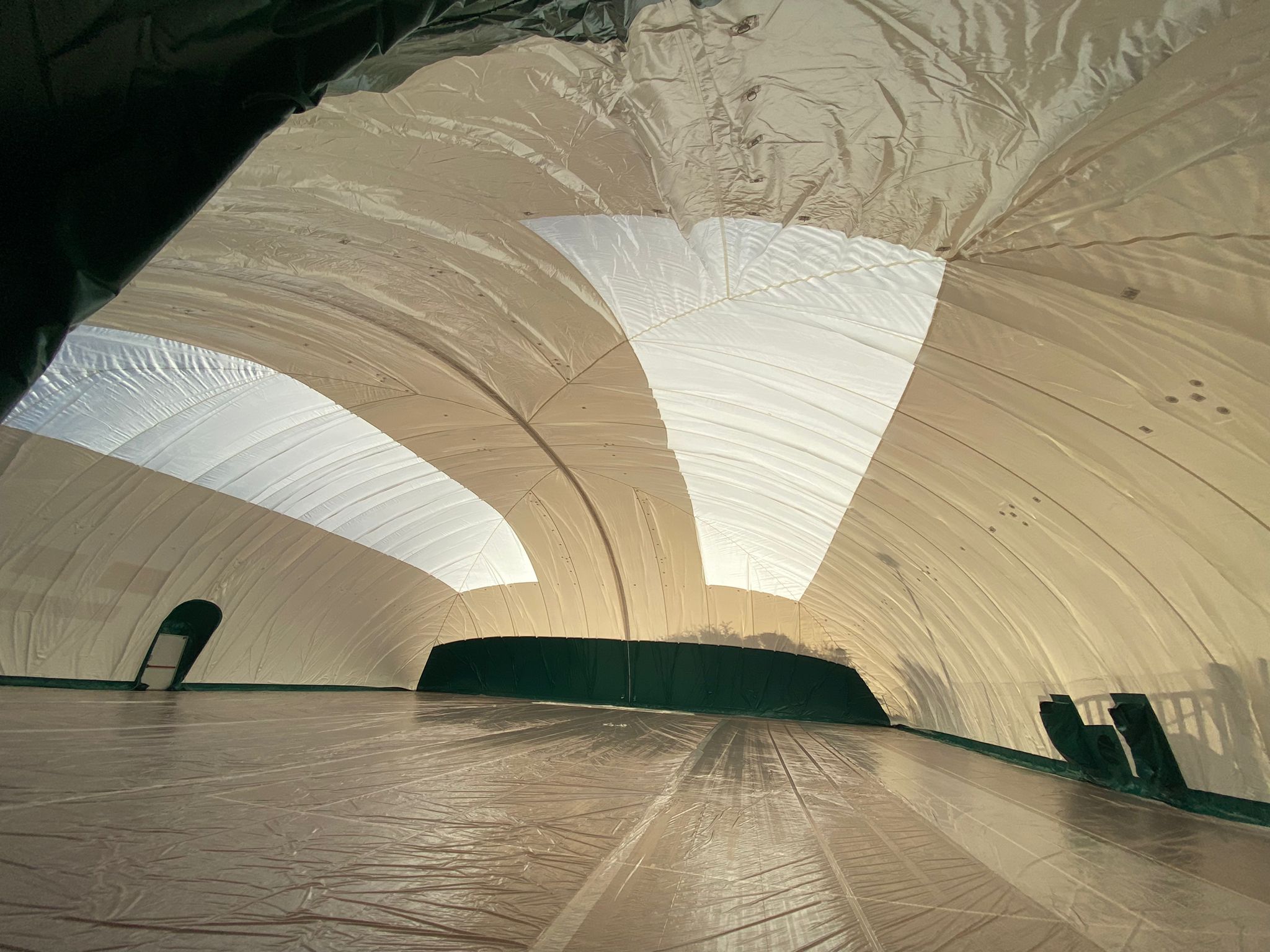

    Interior View

    __wf_reserved_inherit

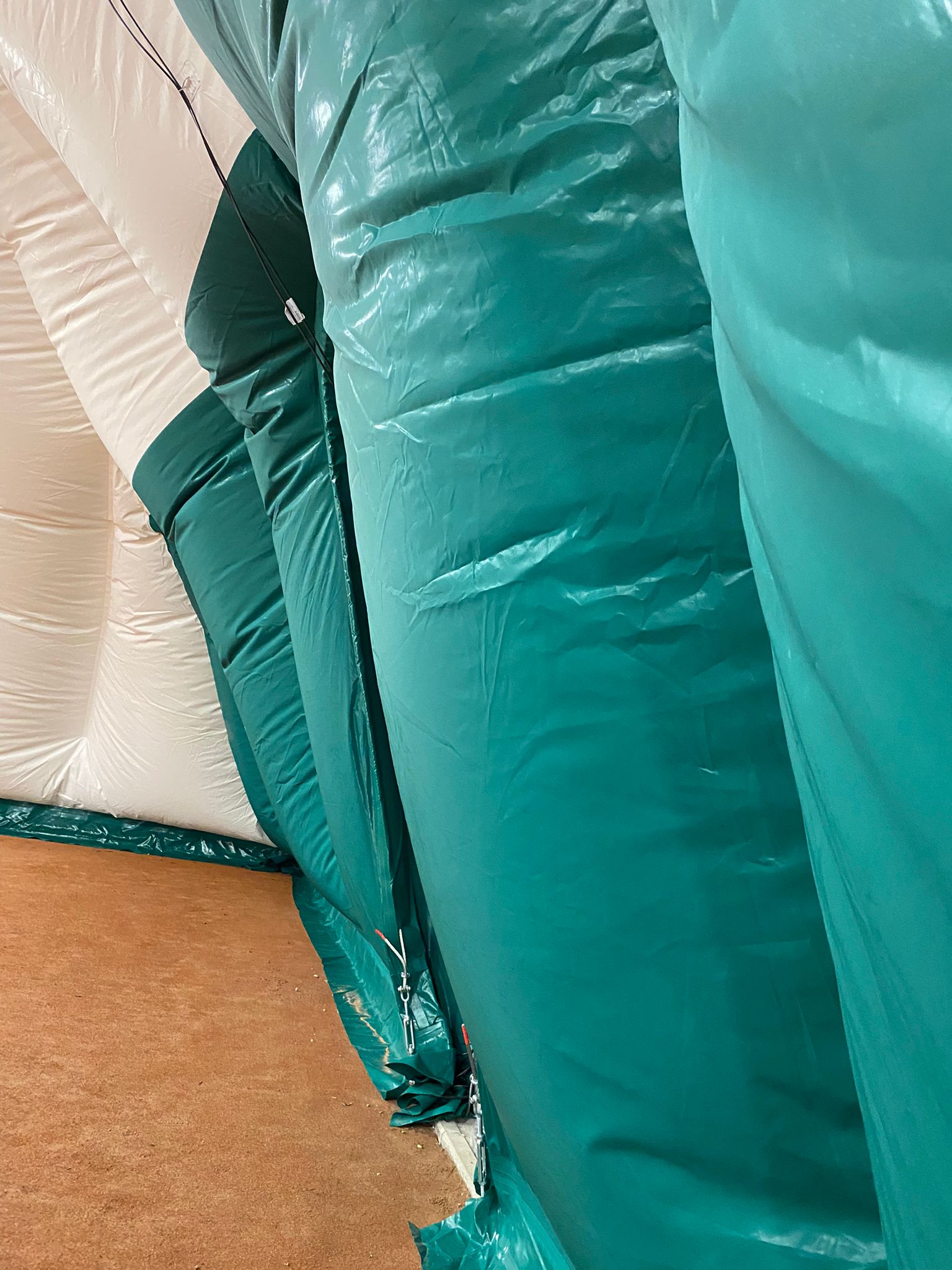

    55cm High Energy Efficiency Air Pocket

    __wf_reserved_inherit

    Air Dome UFO?

    __wf_reserved_inherit
  • What New Owners Should Know About Air Domes

    Embarking on the ownership of an air dome comes with its own set of financial considerations. Understanding the full spectrum of costs – from initial investment to long-term operational expenses – is crucial for effective management. Here’s a guide to help new air dome owners navigate these financial aspects.

    Upfront Costs and Hidden Expenses

    The initial cost of purchasing and installing an air dome is the most obvious expense. This includes the cost of the fabric, frames, anchoring system, doors, and any additional features like lighting or HVAC systems. However, there are often hidden costs that can be overlooked:

    • Site Preparation: Costs for preparing the land, including leveling, drainage, and possibly laying a foundation.
    • Permitting and Legal Fees: Costs associated with obtaining the necessary permits and legal consultations.
    • Transport and Installation: The logistics of transporting materials to the site and the labor costs for installation.
    • Initial Testing and Inspection: Costs for initial testing of the structure for safety and compliance.

    Operational Costs

    Understanding and budgeting for the operational costs of an air dome is key to its sustainable management.

    • Energy Consumption: Air domes require continuous air pressure, which means constant use of blowers or fans. Heating or cooling systems also add to energy costs.
    • Maintenance and Repairs: Regular maintenance, including inspections, cleaning, and repairs, ensures longevity but adds to operational expenses.
    • Staffing and Management: If the dome requires staff for operation, management, or security, these labor costs need consideration.
    • Insurance: Comprehensive insurance for damage and liability should be factored into ongoing costs.

    Longevity and Long-Term Costs

    The lifespan of an air dome is influenced by its quality and maintenance. A well-maintained dome can last several decades, but it’s important to plan for long-term costs:

    • Fabric Replacement: The outer fabric, exposed to weather and environmental factors, may need replacement over time.
    • Technology Upgrades: Upgrading to more efficient HVAC systems or lighting as technology advances.
    • Resale Value: Consider the dome’s potential resale value and how maintenance impacts it.

    Tips for New Owners

    • Conduct Thorough Research: Before purchase, research different manufacturers and models to find the best value for your specific needs.
    • Create a Comprehensive Budget: Factor in all potential costs, both immediate and long-term, to avoid surprises.
    • Seek Expert Advice: Consulting with experienced air dome owners or professionals can provide insights into cost-saving practices and effective maintenance strategies.

    By understanding these financial aspects, new air dome owners can make informed decisions, ensuring their investment is both viable and rewarding in the long term.

  • Tennis Domes

    Partnering with Herox means choosing expertise and professionalism for your tennis air dome project. As a dome operator, you’ll get guidance through the complexities of planning, building, and operating your dome. Trust Herox for long-term support, available 24/7 for the dome’s lifecycle.

    Herox’s air-supported domes are ideal for year-round tennis play, designed to withstand extreme weather and provide comfortable interiors. They offer R-10 insulation, remote monitoring, and automated controls for efficient operation.

    Herox handles dome design, dome and installation, including structure fabrication, insulation, retention cables, entry/exit components, HVAC, automated controls, LED lighting, and interior fixtures. A general contractor, hired by the dome owner, manages site construction and foundational work.

    Dome completion includes fabric membrane setup, inflation, interior lighting, and peripheral components. Herox collaborates with contractors for smooth, timely, and budget-friendly project completion.

    Tennis facilities benefit from Herox’s air-supported domes for permanent or seasonal play. Installation over existing courts is straightforward, with minimal impact. Herox’s anchoring system ensures easy seasonal installation and takedown, reducing downtime and costs.

  • Ciuntea Club Dome

    PROJECT DETAILS

    1. Application: Tennis
    2. Year Completed: 2021
    3. Dimensions: 33m (l) x 36m (w) 9.5m (h) 1,188 m2
    4. Membrane Spec: Sattler Protex | 700 (g/m2) exterior | 500 (g/m2) interior
    5. Membrane Details: Polyester fabric, double-sided PVC coating and lacquered, upside high-gloss embossed, fungicidal finish, flame retardant
    6. Mechanicals: Premium inflation unit with 15.000 mc/h and 246 kW.
    7. Doors: 1 tunnel door, 1 emergency exit
    8. Lighting: LED lighting fixtures
    9. Unique Features: The dome has large 200 m2 of skylights

    Virtual Tour

    Delivery

    Day view with lights on

    Day view with lights off

    Night view

    Competition training
